Row management

This section will explain how to manipulate rows present in the 3D scene.

Movement and rotation

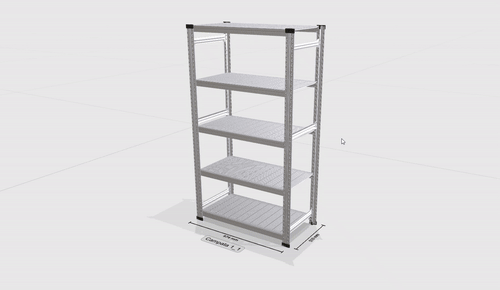

Rows can be moved and rotated at will any time. To enable these features, the CTRL key must be kept pressed. Once pressed, the entire row will turn yellow when the mouse is hovered over it – this indicates that it is possible to rotate/move it.

• Rotation: a row can be rotated by right-clicking any of its components while pressing the CTRL key. The row will be rotated 90 degrees clockwise around its centre-most point.

• Movement: rows can be moved by dragging them with the mouse while holding down the CTRL key. They can be moved in any direction. If the moved row intersects with another element in the 3D scene (for example, the wall of a structure or another row), it will be highlighted in red instead of yellow, and upon releasing the mouse, it will snap to the last available free position.

Cloning and removing a row

Rows can be cloned or removed at any moment if necessary.

To do it, any component of the row must be selected first, then the row can be cloned or deleted by pressing the appropriate button on the configurator’s left panel right under the one used to add a row. The buttons won’t be shown until the first row is added to the 3D scene, then they will be permanently available to the user.

To better understand which row is being inspected, the button text will display the selected row identification number. A confirmation popup will be displayed right after clicking the delete button – if confirmed, the row will be permanently deleted from the 3D scene. The button on the left, instead, will create an independent copy of the selected row.
